SEMI-AUTOMATIC CHANGE-OVER SYSTEM イメージ写真
SEMI-AUTOMATIC CHANGE-OVER SYSTEM

SEMI-AUTOMATIC CHANGE-OVER SYSTEM
Our“Semi-Automatic Change-Over System” series are meant for the stationary manifold which can be operated, semi-automatically changing over the gas consumed cylinder-line to the gas filled cylinder-line.
M O D E L


STANDARD MODEL
CH-100(PANEL SET)
CH-100(PANEL SET)
EXS-100(PANEL SET)
EXS-100(PANEL SET)

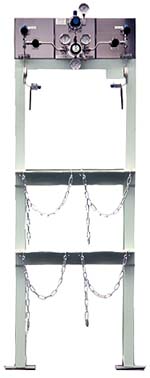

PEDESTAL SET
PEDESTAL SET
MODEL CH-100 EXS-100
Gas Application Industrial or Standard
O2,N2,Ar,Air,H2,He,CO2 		High Purity Gases
Except Halogen & Corrosive
Inlet Pressure 15∼150kg/cm2
Secondary Pressure
(Change-over Press)
A : Pre-set side 8kg/cm2
B : Variable side 7∼9kg/cm2
Outlet Pressure 1∼3kg/cm2(available ∼6kg/cm2)
Standard
Flow-rate		 50 NL/min
Size 300×200×60mm




M O D E L


LARGE FLOW MODEL
CH-140
CH-140
LC-140
LC-140

MODEL CH-140 LC-140
Gas Application O2,N2,Ar,Air etc(H2, He, CO2, N2O)
Inlet Pressure 150kg/cm2
Secondary Pressure
(Change-over Press)
A : Pre-set side 7kg/cm2
B : Variable side 8kg/cm2
A : Pre-set side 10kg/cm2
B : Variable side 12kg/cm2
Outlet Pressure 1∼5kg/cm2(available ∼9kg/cm2) 1∼7kg/cm2
Standard Flow-rate 60 Nm3/H 50Nm3/H
Pressure Switch Non 3kg/cm2 set
Size 600×540×300mm 750×454×305mm
