FLASH-BACK ARRESTORS
セーブPoint
M O D E L

DRY TYPE For Regulator
Model "SAVE-POINT-S"


DRY TYPE（乾式） For Regulator（調整器用） Model “SAVE-POINT-S"


WORKING
PRESSURE
FLOW
CAPACITY
OXYGEN
Max.10kg/cm2
30 Nm3/H
GAS
Max.1kg/cm2
2 Nm3/H

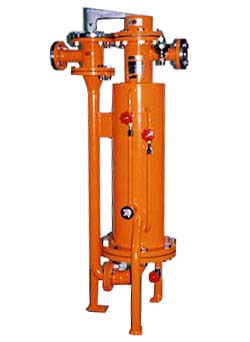

WATER SEALED TYPE
For Acetylene,Propane & Etylene Gas Pipe-line.
Working Pressure 0.2∼1kg/cm2.


WATER SEALED TYPE（水封式）

Model Flow-Capacity Length
DSS-5 5 Nm3/H 500mm
DSS-7 7 Nm3/H 600mm
DSS-10 20 Nm3/H 850mm
DSS-40 40 Nm3/H 1,300mm
DSS-60 60 Nm3/H 1,400mm
DSS-100 100 Nm3/H 1,700mm
DRY TYPE For Pipe-Line
Model "SAVE-Point-L"

DRY TYPE（乾式） ForPipe-Line（配管用） Model “SAVE-Point-L"

For Acetylene,Propane or Ethylene Gas Piping
Working Pressure : Max.1.3kg/cm2
Flow-Capacity:8Nm3/H

DRY TYPE For Torch
Model "MINI-SAVE"

DRY TYPE（乾式） For Torch（トーチ用） Model “MINI-SAVE"

WORKING
PRESSURE
FLOW
CAPACITY
OXYGEN
Max.10kg/cm2
10 Nm3/H
GAS
Max.1kg/cm2
1 Nm3/H
